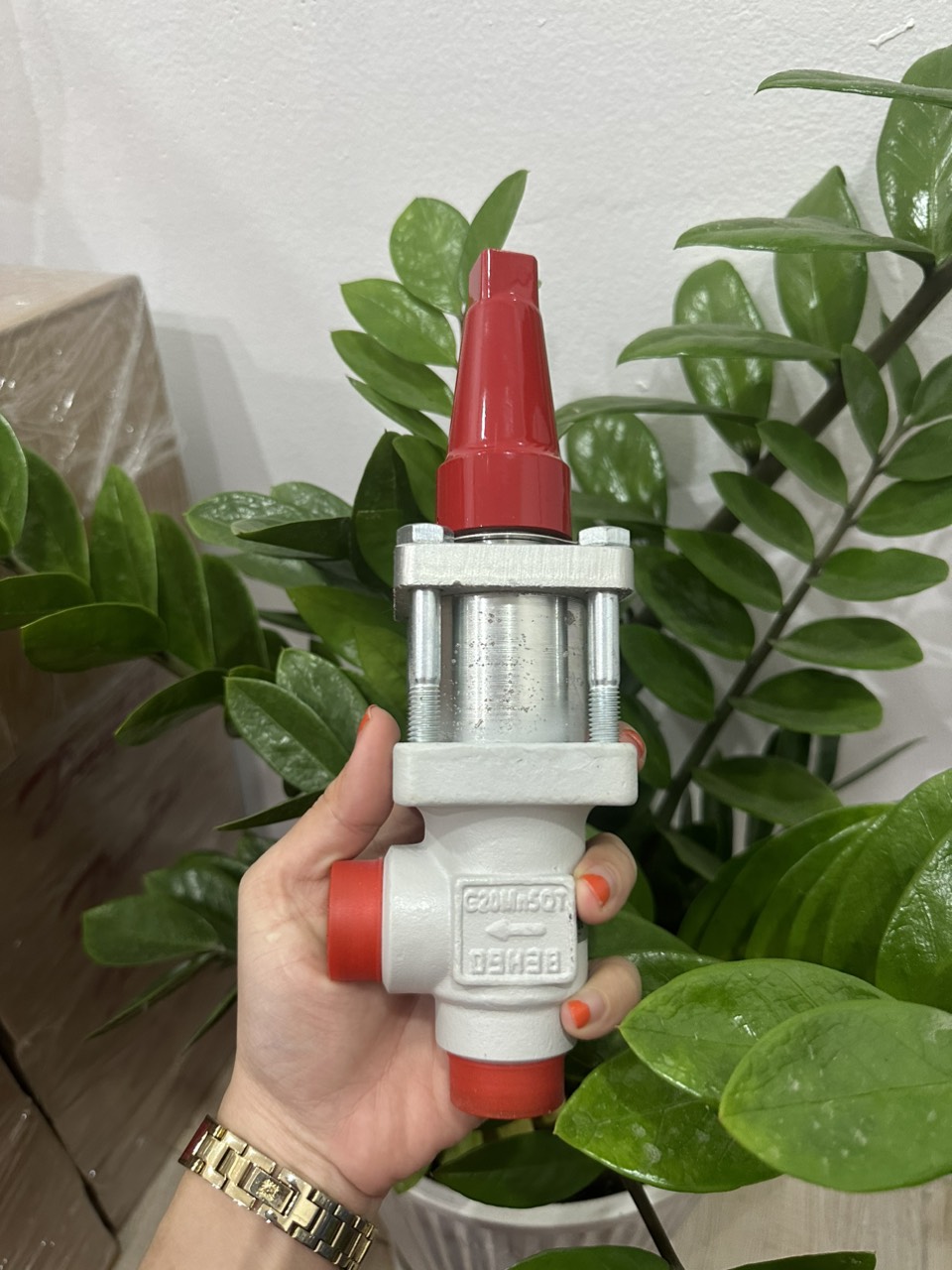

Van Danfoss OFV 20 2412+185

CHARACTERISTIC

VALUE

TYPE CODE

OFV 20

WEIGHT

2.26 Kg

APPROVAL

EAC, LLC CDC TYSK

CAT.

Art. 3, par. 3

COLOUR PAINT

Gray

CONN. SIZE

3/4 IN

CONN. SIZE

20 mm

CONN. STD.

ASME B 36.10M SCHEDULE 80

CONN. TYPE

Butt weld

CV VALUE

0,000 – 0,600 gpm US

DIRECTION

Angleway

EAN NO.

5702428189804

EQUIPM.

Cap

FLUID GROUP

I

KV VALUE

0,000 – 0,520 m3/h

MWP

40,0 bar

MWP

580 psig

PACK FORMAT

Single pack

PRESS. RANGE

2,00 – 8,00 bar

PRESS. RANGE

2,0 – 116,0 psig

DESCRIPT.

Overflow Valve

PROD. GROUP

Press. and temp. regul. valves

PROD. NAME

Pressure regulating valve

PACK QTY.

1 PC

REFRIGERANT

R134a

REFRIGERANT

R22

REFRIGERANT

R401A

REFRIGERANT

R402A

REFRIGERANT

R404A

REFRIGERANT

R407A

REFRIGERANT

R407B

REFRIGERANT

R407C

REFRIGERANT

R407F

REFRIGERANT

R409A

REFRIGERANT

R410A

REFRIGERANT

R421A

REFRIGERANT

R502

REFRIGERANT

R507

REFRIGERANT

R717

REFRIGERANT

R744

TEMP. RANGE

-50 – 150 °C

TEMP. RANGE

-58 – 302 °F
