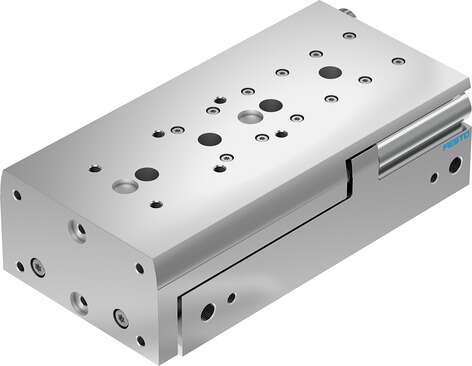

"FESTO Xy lanh FESTO DGST-10-100-Y12A"

Xy lanh Festo DGST-10-100-Y12A

Mã sản phẩm: 8085170

Stroke

100 mm

Adjustable end position range/length front

47 mm

Adjustable end position range/length rear

45.4 mm

Piston diameter

25 mm

Operating mode, drive unit

Yoke

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

optional

Guide

Ball bearing cage guide

Design

Twin piston
Yoke
Piston rod
Slide

Position detection

Via proximity switch

Symbol

00991249

Operating pressure

0.1 MPa … 0.8 MPa

Operating pressure

1 bar … 8 bar

Operating pressure

14.5 psi … 116 psi

Max. speed

0.8 m/s

Repetition accuracy

<= 0.3 mm Mode of operation Double-acting Operating medium Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required) Corrosion resistance class CRC 1 – Low corrosion stress Ambient temperature -10 °C … 60 °C Impact energy in end positions 0.45 J Cushioning length 1.2 mm Max. force Fy 1,160 N Max. force Fz 1,160 N Max. moment Mx 18 Nm Max. moment My 11 Nm Max. moment Mz 11 Nm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 495 N Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 589 N Moving mass 1,524.5 g Product weight 3,141 g Type of mounting With through-hole Pneumatic connection G1/8 Note on materials RoHS-compliant Material cover Wrought aluminium alloy Material seals HNBR Material guide POM
TPE-E
High-alloy steel

Material housing

Wrought aluminium alloy

Material piston rod
